Understanding the Pipeline Pattern in Application Development

Introduction

Have you ever felt overwhelmed trying to manage a complex sequence of operations in your application? The Pipeline Pattern provides a structured approach to handling such scenarios, promoting code clarity and maintainability.

What is the Pipeline Pattern?

The Pipeline Pattern, also known as Pipes and Filters, is a design pattern that divides a complex processing task into a sequence of independent, reusable stages (or filters). Each stage performs a specific operation on the input data and passes the result to the next stage in the pipeline.

Think of it like an assembly line in a factory. Each station performs a specific task on the product before passing it down the line.

Key Components

A typical pipeline consists of the following components:

• Source: The starting point of the pipeline. It provides the initial data to be processed.
• Filter: A processing stage that performs a specific transformation on the data. Filters are independent and can be added, removed, or reordered without affecting other filters.
• Pipeline: The sequence of filters that define the overall processing flow.
• Sink: The end point of the pipeline. It consumes the final processed data.

Benefits of Using the Pipeline Pattern

• Improved Code Organization: The Pipeline Pattern promotes modularity and separation of concerns, making code easier to understand and maintain.
• Increased Reusability: Filters can be reused in different pipelines, reducing code duplication.
• Enhanced Flexibility: Pipelines can be easily modified by adding, removing, or reordering filters.
• Simplified Testing: Individual filters can be tested independently, making it easier to ensure the correctness of the overall pipeline.

A Practical Example

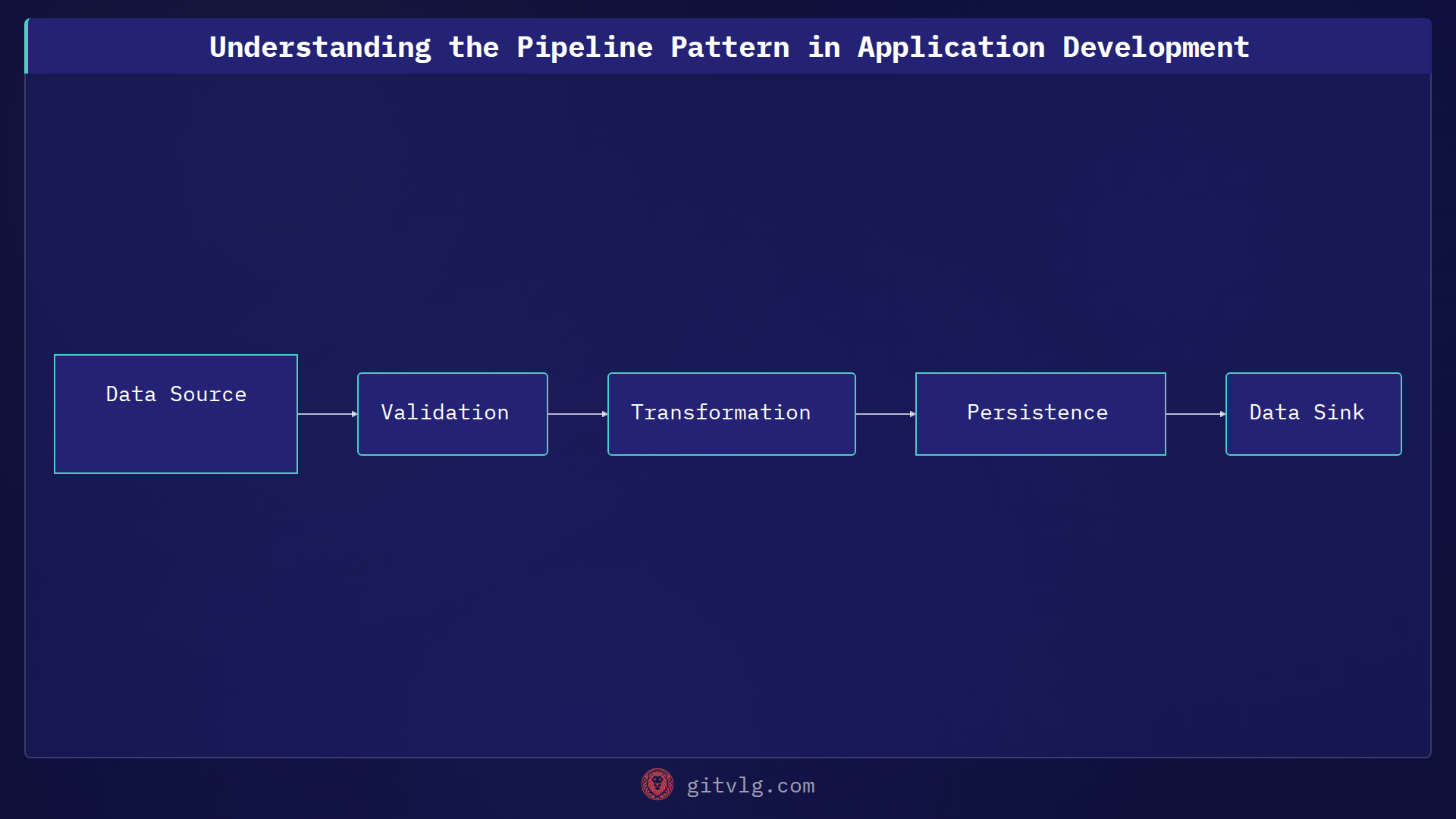

Consider a scenario where you need to process a batch of data records. The processing involves the following steps:

1. Validate the data.
2. Transform the data.
3. Persist the data to a database.

Here's how you can implement this using the Pipeline Pattern:

<?php

interface Filter {
    public function process($input);
}

class ValidationFilter implements Filter {
    public function process($input) {
        // Validation logic here
        return $input;
    }
}

class TransformationFilter implements Filter {
    public function process($input) {
        // Transformation logic here
        return $input;
    }
}

class PersistenceFilter implements Filter {
    public function process($input) {
        // Persistence logic here
        return $input;
    }
}

class Pipeline {
    private $filters = [];

    public function addFilter(Filter $filter) {
        $this->filters[] = $filter;
    }

    public function process($input) {
        $result = $input;
        foreach ($this->filters as $filter) {
            $result = $filter->process($result);
        }
        return $result;
    }
}

// Usage
$pipeline = new Pipeline();
$pipeline->addFilter(new ValidationFilter());
$pipeline->addFilter(new TransformationFilter());
$pipeline->addFilter(new PersistenceFilter());

$data = ['key' => 'value'];
$pipeline->process($data);

?>

Conclusion

The Pipeline Pattern is a powerful tool for managing complex processing tasks. By dividing the task into a series of independent filters, you can create code that is more organized, reusable, and maintainable. If you find yourself struggling with a complex sequence of operations, consider using the Pipeline Pattern to simplify your code.
